12, 24, 240 Volt Diesel & Petroleum Pumps

Fill-Rite Pumps & Accessories

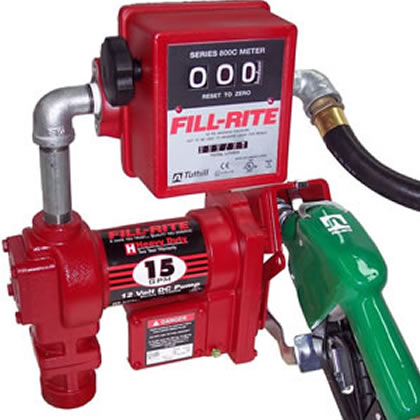

12 or 24 Volt DC

57 or 76LPM

  • Explosion-proof Ex 3620, ¼ HP motor with permanent magnet and ball bearings and Iron Rotor
  • Machined, long-lasting Bronze vanes
  • Heavy-duty switch, thermal protection, junction box and three-wire battery cable
  • Automatic bypass valve and strainer
  • 3.75 Metre x 20mm hose with static ground wire
  • Manual nozzle with nozzle boot that protects against dirt and contamination
  • 50mm threaded base for drum or tank openings
  • Telescoping steel suction pipe from 56cm to 102cm
  • Pump may be padlocked and no separate foot valve is required
  • Automatic Nozzle
  • 800 or 900 Series Meter

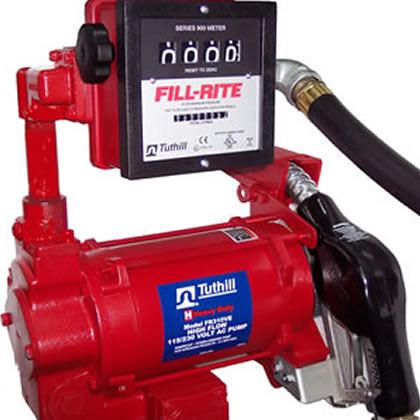

240 Volt AC

68 or 132LPM

  • Explosion-proof Ex 3620, ¾ HP motor 240 VAC-50Hz
  • Motor has sealed bearings, heavy-duty switch and thermal overload protection with built-in junction box
  • Cast iron pump housing with iron rotor and carbon vanes
  • Check valve, pressure relief valve, strainer assembly and automatic bypass valve
  • 50mm threaded base for drum or tank openings
  • No foot valve required
  • Automatic Nozzle
  • 800 or 900 Series Meter
  • Pedestal and adaptor for use with underground tanks

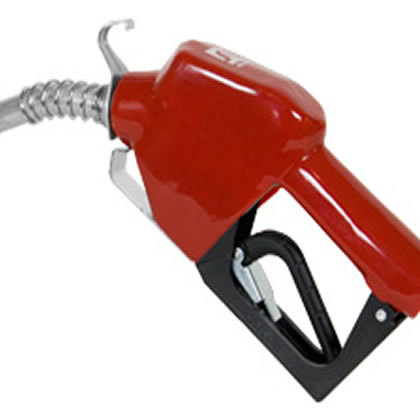

Automatic Nozzles

Diesel or Unleaded

  • Diesel 3/4"
  • Diesel 1"
  • Standard Unleaded
